SSDs and GPUs are some of the most important parts of every single PC out there, and yet, they can also become some of the most confusing, thanks to their ever-evolving dynamics and generations. Marketing and spec-splitting make PCIe generations sound worlds apart, when they really aren’t. It’s been nearly five years since PCIe 5.0 entered the mainstream conversation, and yet the truth remains refreshingly boring: PCIe 3.0 — a 16-year-old standard — is still more than enough for around 90% of users today, regardless of use case. That includes gaming, general productivity, and even light creative work.
What’s more, PCIe 3.0 isn’t just “good enough,” it’s objectively better value right now. As newer standards race ahead on paper, pricing, thermals, and diminishing returns have quietly made Gen3 one of the most sensible choices in modern PC builds, even in 2026.
PCIe 5.0 SSDs are insanely fast on paper, but they don’t really make a difference in daily use
We’ve reached the point of diminishing returns
You don’t always need a new motherboard for GPU or NVMe upgrades
Backwards compatibility is doing more work than marketing admits
One of the biggest myths surrounding PCIe upgrades is the idea that you need a new motherboard to fully “unlock” modern GPUs and NVMe drives. In reality, PCIe’s backwards compatibility ensures that newer hardware works perfectly fine in older slots. A PCIe 4.0 or even PCIe 5.0 GPU running in a PCIe 3.0 x16 slot is not being strangled in any meaningful way.
Reputable testing from multiple outlets shows that PCIe 5.0 GPUs haven’t even managed to fully saturate PCIe 4.0 bandwidth outside of extremely niche scenarios. In gaming workloads (frame rates, frame pacing, asset streaming), the real-world difference between Gen4 and Gen5 hovers around 2–3%. Drop down to Gen3, and the gap still falls in single digits, with only a handful of edge cases deviating from the pattern and reaching the 10% territory.
Gen5 SSDs and PCIe 5.0 GPUs (RTX 50-series cards) don’t need an exclusive 5.0 slot to work, because it’s always backwards compatible with past PCIe slots and lanes. Unless you’re actively benchmarking bottlenecks or running bleeding-edge workloads, your GPU simply doesn’t care what generation slot it’s in. And that’s a good thing because it means upgrades don’t need to be platform resets (unless you’re also planning on moving to a new type of RAM or a new generation of CPUs).
PCIe 5.0 SSDs are insanely fast on paper, but they don’t really make a difference in daily use
We’ve reached the point of diminishing returns
PCIe 5.0 SSD speeds look incredible, but they rarely matter
Sequential throughput and real-world performance are never the same

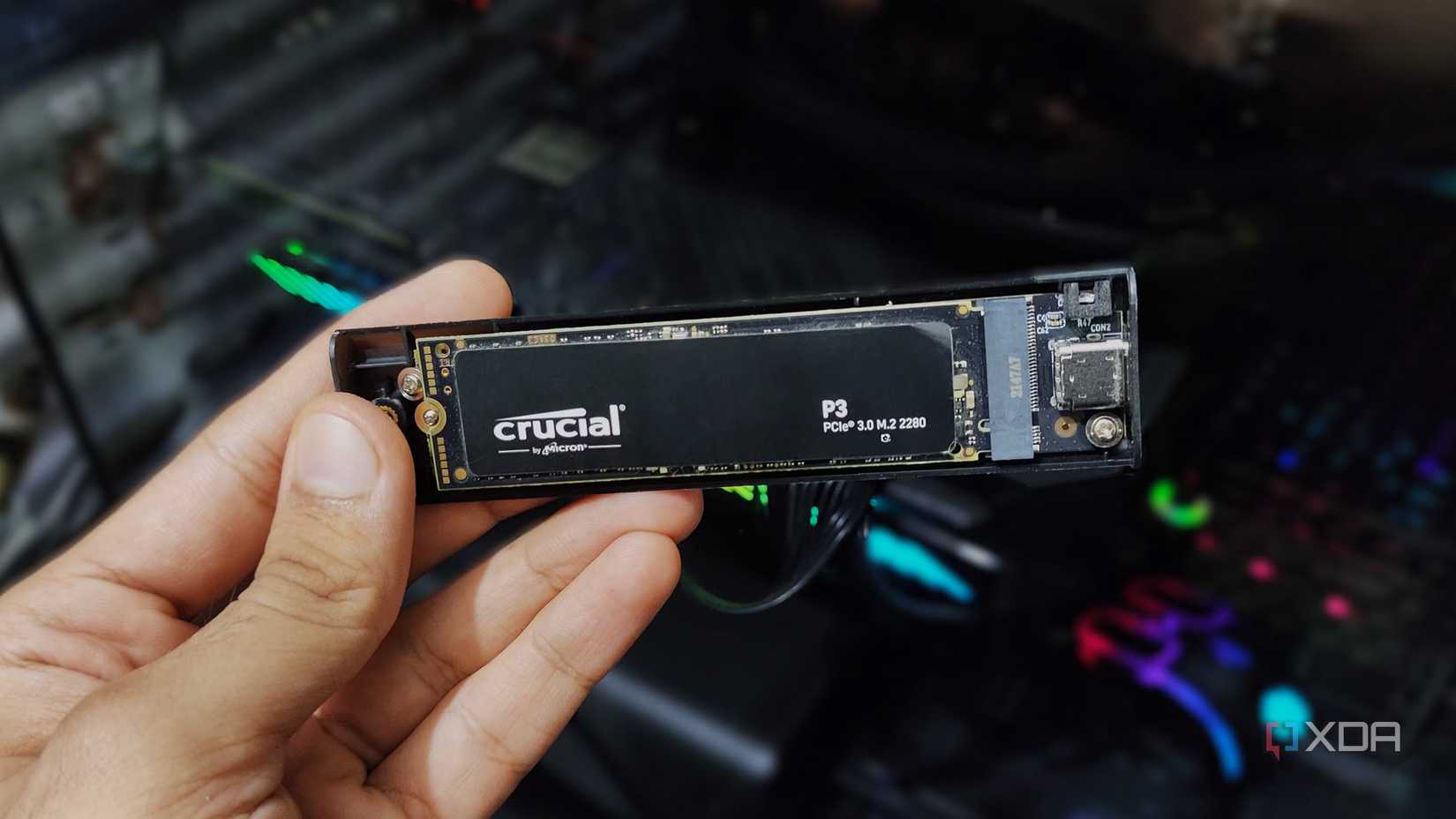

PCIe 5.0 NVMe drives boast jaw-dropping sequential numbers on spec sheets, but you’ll almost never hit those speeds in practice. Between CPU overhead, storage controllers, game engines, and asset pipelines, there are plenty of bottlenecks long before raw bandwidth becomes the limiting factor.
Games, in particular, simply haven’t caught up. Even with technologies like DirectStorage, the biggest leap happens when moving from SATA to any NVMe drive, and not from Gen3 to Gen5. Gen4 remains the practical ceiling for gaming today, which conveniently places Gen 3 just one step behind.
And that’s where value comes in. Gen3 drives are significantly cheaper, often allowing you to double your storage capacity for the same money. In exchange, you’re looking at a few extra seconds on loading screens (which are already getting shorter and less frequent), and a handful of frames fewer. A Gen3 NVMe works as bulk storage, and even works perfectly well as a dedicated game drive, delivering near-instant access without paying a premium for bandwidth you’ll never fully use.
My next storage upgrade won’t be a Gen 5 NVMe, I’m getting this instead
User experience matters more than benchmarks
GPUs on PCIe 3.0 lose shockingly little performance
Because GPUs are rarely bandwidth-limited in games
Modern GPU scaling tests have consistently shown that even flagship graphics cards lose very little performance when forced to run on PCIe 3.0 x16. In real-world gaming benchmarks, the difference is often within the margin of error, with only a few outliers showing noticeable dips.
The reason is simple: most GPUs are not limited by PCIe bandwidth during gameplay. Instead, the limitations come from shader throughput, cache efficiency, and VRAM access, all of which happen on the card itself. Once the assets are loaded, the PCIe bus largely steps out of the way.
Yes, extreme GPUs like the RTX 4090 or 5090, or even an AMD-equivalent flagship, can occasionally show larger deltas. But those cards live firmly in the 1% category. If you’re running hardware that’s that expensive, you’re already operating outside the norms this discussion is aimed at. For everyone else, PCIe 3.0 x16 remains perfectly capable of feeding modern GPUs without meaningful compromise, proving that gaming performance stopped scaling with PCIe generations a long time ago.
3 reasons you shouldn’t care what PCIe generation your GPU is using
PCIe 3.0, PCIe 4.0, or PCIe 5.0 — it doesn’t matter
PCIe 3.0 is still relevant, and it’ll stay that way
Not everyone plays the newest AAA release at launch
Even if future AAA games begin showing slightly larger performance gaps on older interfaces, PCIe 3.0 isn’t going anywhere. Most gamers don’t exclusively play the latest and greatest releases. Indie titles, competitive games, and anything released before the mid-2010s run flawlessly from Gen3 storage, and they often make up the bulk of real gaming libraries.
There’s also the often-ignored factor of thermals and longevity. PCIe 4.0 and 5.0 drives frequently require large heatsinks and still operate at 70–75°C under load. PCIe 3.0 drives, by contrast, tend to idle and operate far cooler, often in the 45–50°C range under heavy load. For a component that is powered on whenever your PC is running, sustained lower temperatures translate directly into a longer lifespan and more consistent performance.
Between broader compatibility, cooler operation, and continued relevance across massive game libraries, PCIe 3.0 remains a sensible, future-proofed choice in ways that don’t show up on spec sheets.

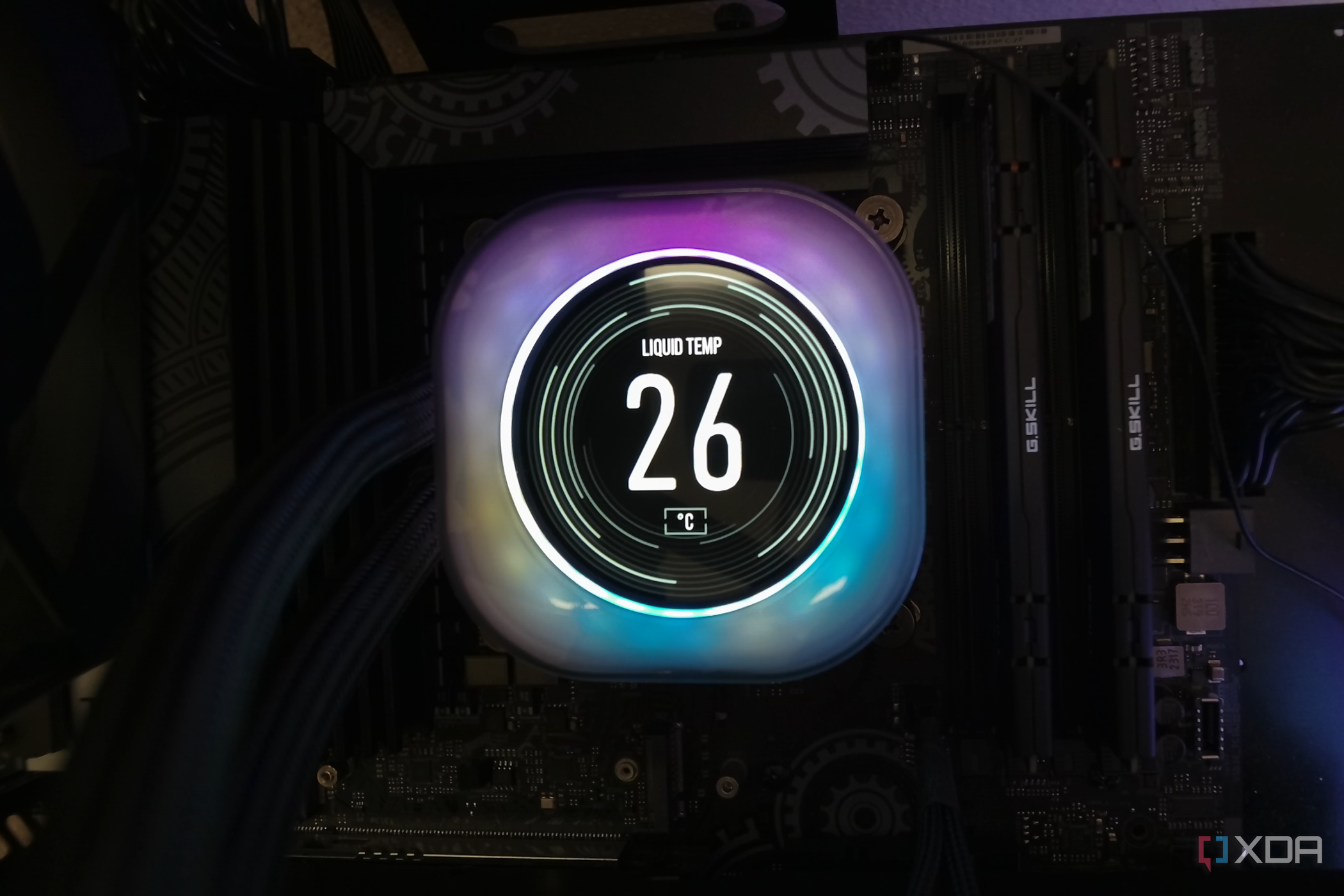

3 temperature sensors I pay attention to outside of my CPU and GPU
Your CPU and GPU aren’t the only parts running hot
Who actually needs PCIe 5.0?
A 5–10% reality check
PCIe 5.0 absolutely has a place, but just not in most gaming PCs. Video editors working with massive uncompressed footage, data scientists pushing huge datasets, server builders, and professional streamers with complex I/O pipelines can genuinely benefit from the added bandwidth.
For everyone else, it’s overkill. Choosing PCIe 3.0 today often means more storage, more media, and far better value per dollar. You’re trading imperceptible performance differences for tangible capacity gains, and that’s a smart trade. If your game loads take an extra couple of seconds, all it costs you is one more YouTube short on your phone to look at. In return, you save money, reduce heat, and avoid chasing specs that don’t meaningfully improve your experience. That’s buying smarter, and getting the most of it.
SSD prices could spike as NAND makers reportedly eye steep cost increase
If you’re planning to buy a new SSD soon you should do it quickly.
16 years on, PCIe 3.0 drives continue to be future-proof
Choosing PCIe 3.0 today is about understanding where performance actually plateaus and spending accordingly.
Progress doesn’t always mean progress for everyone. PCIe 3.0 stands as a reminder that real-world performance, value, and longevity matter far more than headline numbers. While newer standards push boundaries for specialized workloads, most users benefit more from balanced systems than bleeding-edge specs.
Choosing PCIe 3.0 today isn’t about clinging to the past, but rather about understanding where performance actually plateaus and spending accordingly. In a landscape obsessed with “next-gen,” restraint turns out to be a rather future-proof upgrade.
